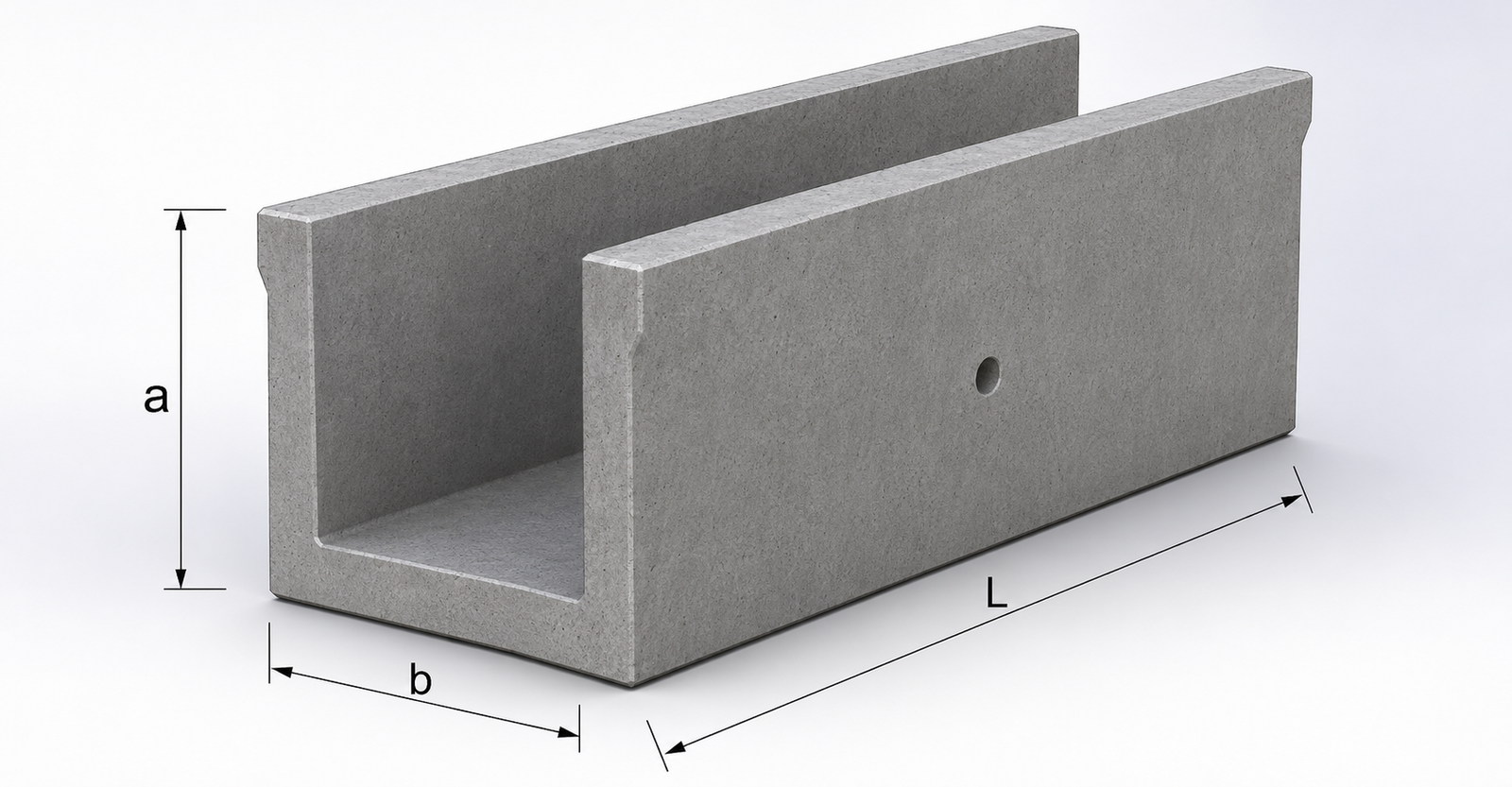

U Drain T6

DRSTI Precast, a Leading Precast Manufacturer and Supplier based in Tamil Nadu, specializes in manufacturing durable and high-quality infrastructure solutions such as Precast RCC U Drains, U Shape Utility Ducts, Precast Stormwater Trenches and Cable Trenches. These products are designed with safety, durability, and quality in mind, providing reliable performance in various environments.

Precast U Drain T6 is specifically designed for layout roads, pedestrian pathways, residential areas, walkways and other light-load applications. These drains provide an efficient solution for collecting and directing surface water, helping to prevent water accumulation and maintaining a clean and safe environment. The primary function of the RCC Precast U Drain is to effectively collect and channel rainwater and surface runoff towards the appropriate discharge point.

The U-shaped channels or U-gutters are engineered to provide smooth and efficient water flow while offering a durable and long-lasting drainage solution. U Drain T6 is particularly suitable for pedestrian areas and layout developments, where drainage is required alongside walkways, internal roads and open spaces. Suitable Drain Covers can also be provided based on the required application and load conditions.

These drains are commonly used in residential layouts, pedestrian pathways, housing developments, urban areas, landscaping areas, parks, walkways and other light-duty applications. Their precast construction allows for faster installation, consistent quality and reduced on-site construction time.

U Drain T6 can also be customized to suit specific project requirements, including different dimensions, lengths and cover options.

Contact DRSTI Precast today to explore our wide range of Precast U Drains, U Shape Drains, Drain Covers and other premium precast concrete products for your project requirements.

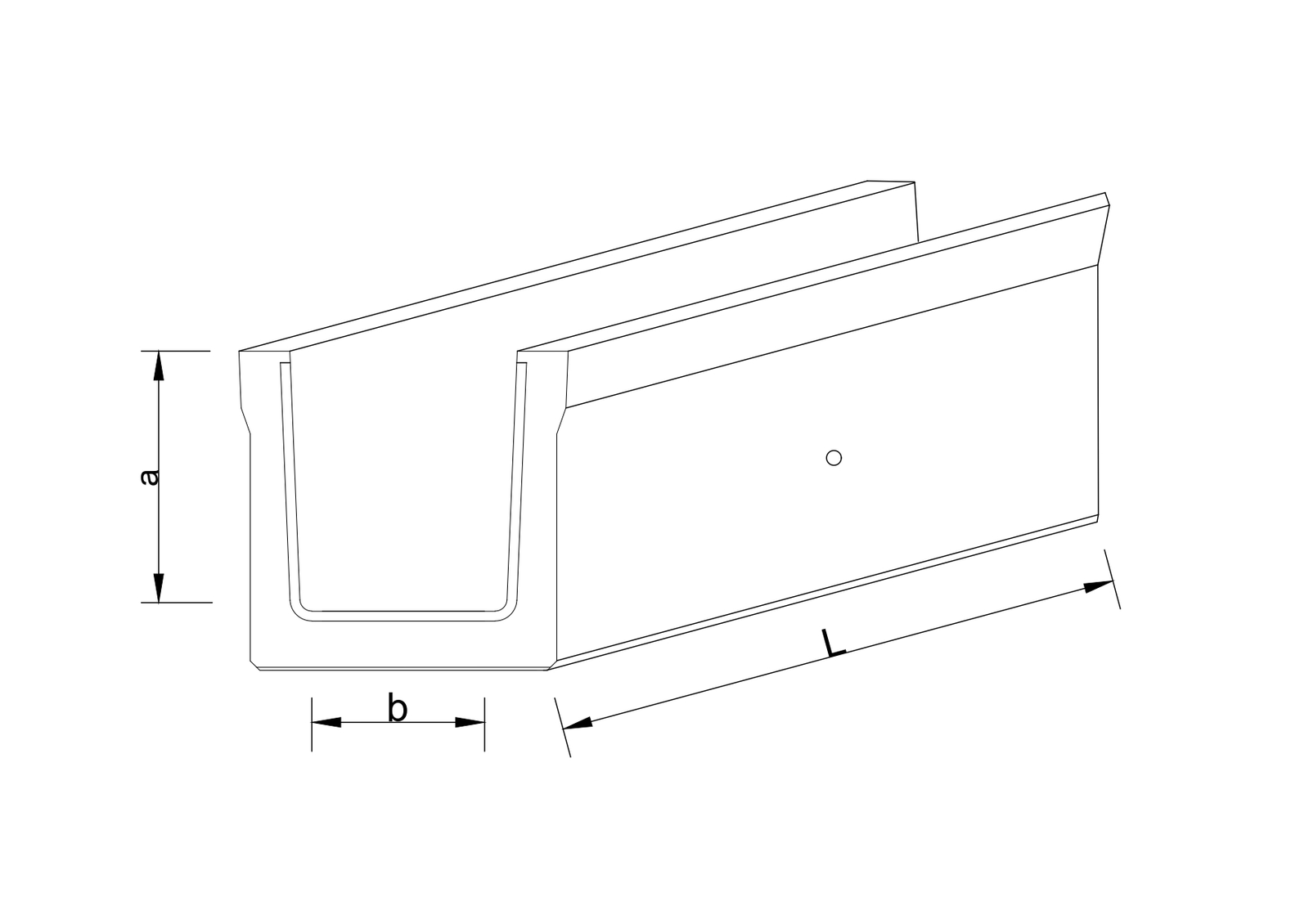

Technical Specification:

U Drain - T6

S. No	Product Code	Length Length (mm)mm)	b x a (mm)	b (mm)	a (mm)	Thickness (mm)	Weight (Kg)
1	WLUD001	2000	300 x 300	300	300	70	167
2	WLUD002	2000	450 x 450	450	450	70	232

Drain Cover

S. No	Product Code	Length (mm)	Width (mm)	Thickness (mm)	Weight (Kg)
1	WLUDC001	600	450	50	33
2	WLUDC002	450	600	50	33

Frequently Asked Questions

1. What is a Precast U Drain T6?

DRSTI Precast U Drain T6 is a precast concrete U-shaped drainage channel designed to collect and convey rainwater and surface water. It is suitable for pedestrian pathways, residential layouts, walkways, and other light-duty drainage applications.

2. What sizes are available in DRSTI Precast U Drain T6?

Model Size (b × a) Length Thickness Approx. Weight WLUD001 300 × 300 mm 2000 mm 70 mm 167 kg WLUD002 450 × 450 mm 2000 mm 70 mm 232 kg Custom dimensions and lengths may be available subject to project requirements and production feasibility.

3. What is the price of U Drain T6 in Tamil Nadu, Kerala and Karnataka?

The price of U Drain T6 depends on the required size, order quantity, cover requirements, transportation distance, and delivery location across Tamil Nadu, Kerala, and Karnataka. Contact DRSTI Precast for a project-specific quotation.

4. Is U Drain T6 suitable for pedestrian pathways and residential layouts?

Yes. U Drain T6 is intended for light-duty drainage applications such as pedestrian pathways, residential layouts, and walkways. The suitability of any vehicle crossing or other loading condition should be confirmed against the approved product design.

5. Does DRSTI Precast supply U Drain T6 with covers?

Yes, cover options are available. Listed cover specifications include 50 mm thickness and an approximate weight of 33 kg (available in 600 × 450 mm and 450 × 600 mm sizes). Confirm the compatible cover dimensions and loading requirements with DRSTI Precast before ordering.

6. Can U Drain T6 withstand heavy vehicle traffic?

No. U Drain T6 is intended only for light-duty applications and is not recommended for heavy vehicle traffic. The channel, cover, foundation, and installation conditions must be evaluated against the required load capacity and engineering design.

7. Where can I buy Precast U Drain T6 in South India?

You can contact DRSTI Precast for U Drain T6 enquiries, product specifications, and quotations for project locations across Tamil Nadu, Kerala, and Karnataka. Share your required size, quantity, and delivery location to receive project-specific details.

8. Does DRSTI Precast supply U Drain T6 in Karnataka and Kerala?

Yes. DRSTI Precast manufactures and supplies precast concrete drainage products, including U Drain T6, for construction and infrastructure projects across Tamil Nadu, Kerala, and Karnataka, with manufacturing based in Coimbatore.

9. What details are required to get a U Drain T6 quotation?

Please share the required U Drain size, total running length or quantity, cover requirements, project location, loading conditions, and expected delivery schedule. Drawings or BOQ details can also help with quotation preparation.

10. Can U Drain T6 dimensions and lengths be customized?

Customization may be possible depending on the required dimensions, project specifications, order quantity, and production feasibility. Contact DRSTI Precast with your drawings or requirements for confirmation.

11. How is a precast U Drain T6 installed?

Installation generally involves preparing the approved foundation or bedding, positioning and aligning the precast units, maintaining the specified drainage gradient, and installing compatible covers where required. Follow the project drawings and engineer-approved installation method.

12. What is the difference between precast U Drain and cast-in-situ drainage?

U Drains are manufactured before delivery to the project site. They can reduce on-site formwork and concrete casting work and help provide consistent manufactured dimensions. Actual installation time and performance depend on site conditions and the approved design.

13. Can U Drain T6 be used for stormwater drainage?

U Drain T6 can be used for stormwater and surface-water drainage in suitable light-duty applications, provided the channel dimensions, gradient, outlet, and hydraulic capacity are appropriate for the project.

14. What other precast products does DRSTI Precast offer?

Besides U Drain T6, DRSTI Precast manufactures U Drains in T10, T25, and T40 variants, along with Box Culverts, Drain Covers, Manhole Covers, Earth Pit Chambers, Manhole Chambers, Kerb Stones, Compound Walls, Retaining Walls, Septic Tank Rings, and Cable Trenches.

15. How can I contact DRSTI Precast for U Drain T6 enquiries?

Contact DRSTI Precast using the details below for product specifications, availability, and project quotations. • Phone: 99439 43919 | 98435 87001 • Email: drstiprecast@gmail.com • Website: https://drsti.in
