How does U Drain T25 comply with Indian Standards?

The U-Drain T25 is engineered considering the relevant Indian requirements for structural concrete, precast construction and vehicular loading. Depending on the project application and specifications, design considerations may include IRC:6 for vehicular loading, IS 456 for structural concrete design, and IS 10262 for concrete mix proportioning. DRSTI Precast can provide relevant product drawings, reinforcement details, concrete test reports and Quality Assurance Plans (QAP), where required, for project-specific technical review and approval.

U Drain T25

Q: Why should developers choose Precast U Drains over site-cast drains?

Precast U Drains can offer faster installation because factory-manufactured units can reduce on-site construction and curing activities. Factory-controlled quality provides consistent dimensions, concrete quality and reinforcement placement. They can also reduce site work involving shuttering, reinforcement fabrication and wet construction. A uniform internal drainage profile provides a consistent hydraulic section, while predictable lifting, alignment and installation can make execution planning easier. Actual time and cost benefits depend on project size, site conditions, installation methodology and logistics.

Q: How is a Precast U Drain T25 installed at the site?

The installation process generally involves excavating the drain alignment to the required line, level, width and depth; preparing and leveling the specified PCC or foundation base; lifting and positioning precast U-Drain units using suitable lifting equipment; aligning units to maintain the required line, level and hydraulic gradient; treating and sealing joints using the specified jointing or sealing system; installing precast covers where required; and backfilling and compacting side trenches in suitable layers according to project specifications.

DRSTI
U Drain T25

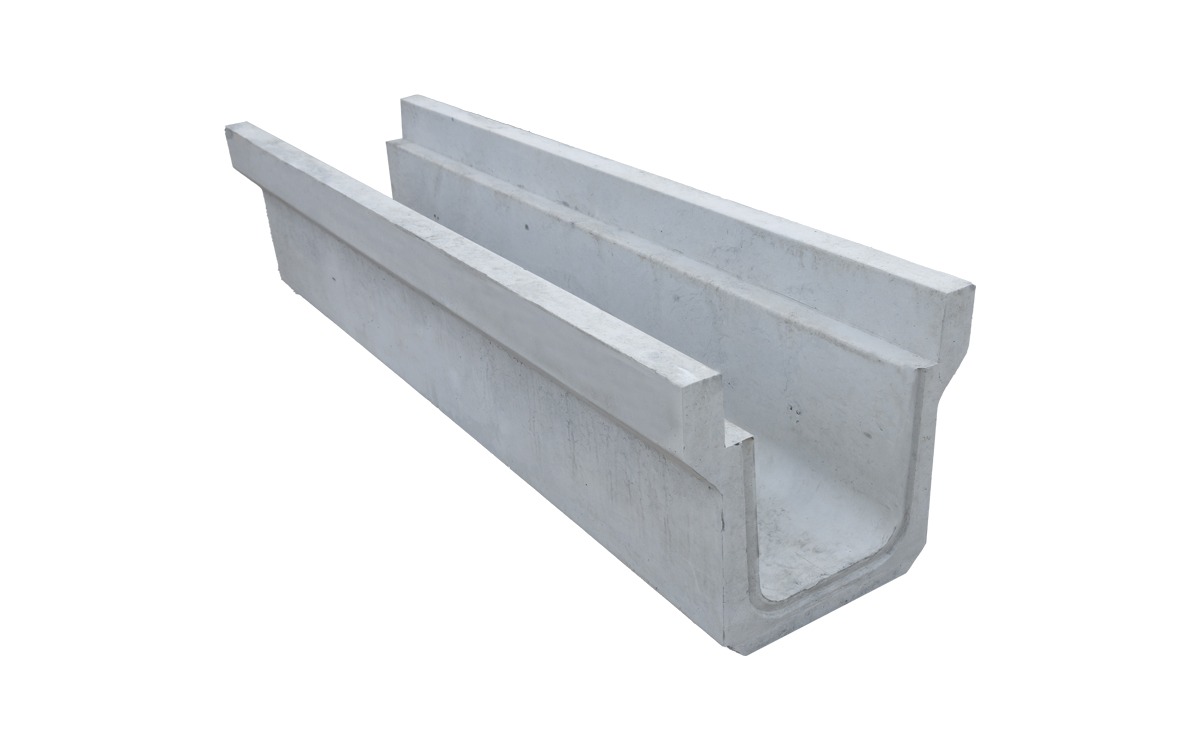

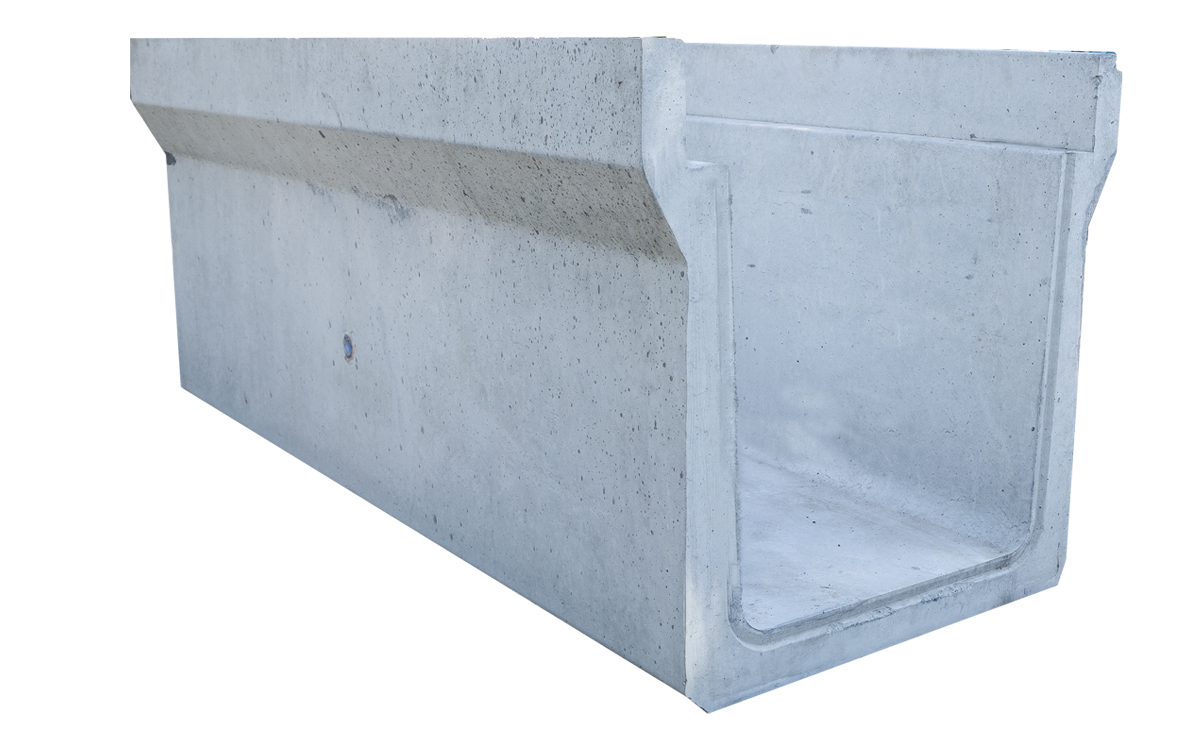

T25 Load Class Precast Drain for Highway and Urban Stormwater Systems.

Based in Tamil Nadu, Drsti Precast is a Leading Precast Manufacturer and Supplier renowned for its durable, high-quality infrastructure solutions. Their range includes Concrete RCC Precast U Drain, U Shape Utility Ducts, and Cable Trenches. These products prioritize safety, longevity, and quality, ensuring they endure challenging environments and the test of time.

Precast U-drains are crafted to effectively handle surface water drainage across diverse environments, including roadways, highways, industrial sites, and residential areas. The main purpose of U Ditch is to efficiently discharge collected stormwater effectively to a targeted area. These U-shaped channels, also known as U-gutters, are specialized drainage systems crafted to manage and redirect water flow across various applications. Based on different load conditions, suitable Drain Slabs can also be provided.

Rainwater Channel manages stormwater drainage and House underground cables and waterlines in urban areas. This variety of U Drains are mainly used in Part of the Road, Highways and Roads with heavy traffic, Parking lots, Industrial areas, and Areas with high Stormwater runoff. Customizable to meet specific needs.

Technical Specification:

U Drain – T25

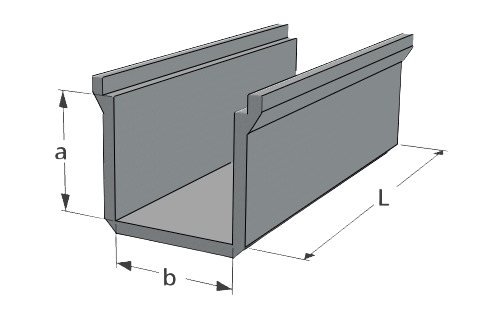

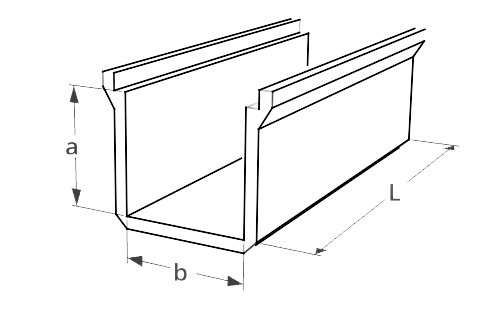

S. No	Product Code	b x a (mm)	b (mm)	a (mm)	Thickness (mm)	Weight (Kg)
1	WUD001	300 x 300	300	300	70	218
2	WUD002	300 x 450	300	450	80	280
3	WUD003	300 x 600	300	600	80	363
4	WUD004	450 x 300	450	300	70	245
5	WUD005	450 x 450	450	450	80	329
6	WUD006	450 x 600	450	600	90	395
7	WUD007	600 x 300	600	300	90	320
8	WUD008	600 x 450	600	450	90	400
9	WUD009	600 x 600	600	600	90	445
10	WUD010	900 x 900	900	900	120	613
11	WUD011	750 x 750	750	750	100	600
12	WUD012	1200 x 1200	1200	1200	120	1092

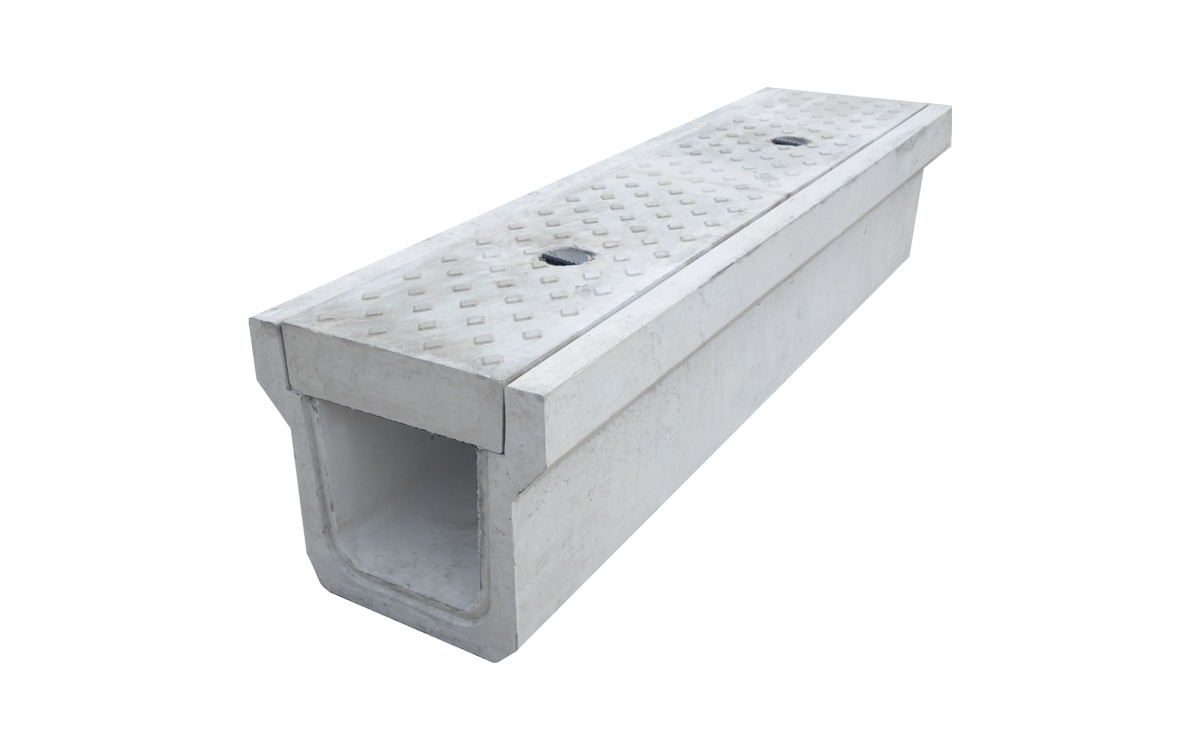

Drain Cover

S. No	Product Code	Length (mm)	Breadth (mm)	Thickness (mm)	Weight (Kg)
1	WUDC001	1000	410	110	113
2	WUDC002	1000	580	130	188
3	WUDC003	1000	740	145	269
4	WUDC004	1000	1050	150	380
5	WUDC005	1000	890	150	320
6	WUDC006	1000	1350	150	496

Frequently Asked Questions

1. What is a Precast U Drain T25?

• A Precast U Drain T25 is a heavy-duty precast concrete drainage channel designed for efficient stormwater management in areas exposed to vehicular traffic and demanding site conditions. The U Drain T25 is suitable for roads, highways, industrial areas, commercial developments, and other infrastructure projects where strength and reliable drainage performance are important. • DRSTI Precast manufactures U Drains T25 using quality concrete, engineered reinforcement, and precision dimensions to provide durable and consistent drainage solutions. The U Drain T25 is designed with reference to applicable JIS A 5372 requirements and is available in different sizes to suit project requirements. It is a practical choice for contractors, builders, developers, and infrastructure projects looking for a reliable precast U Drain manufacturer and supplier in Tamil Nadu.

2. Where can Precast U Drain T25 be used?

Precast U Drain T25 can be used for heavy-duty drainage applications where vehicular traffic and stormwater management are important considerations. • Residential & Real Estate: gated communities, apartment developments, entrance ramps, firetender access paths • Commercial Projects: commercial complexes, office developments, petrol stations, high-traffic access areas • Industrial Facilities: manufacturing plants, warehouses, logistics parks, container yards • Infrastructure Projects: roads, highways, PWD works, municipal stormwater drainage networks (subject to applicable project specifications and approvals)

3. Can U Drain T25 be used as a Precast Cable Trench?

Yes. A suitably engineered U-shaped precast concrete channel can be used as a Precast Cable Trench for electrical power, industrial utilities and telecommunications applications. DRSTI Precast can provide suitable trench configurations, including provisions for cable entry and access, subject to project requirements.

4. What type of covers are available for U Drain T25?

DRSTI Precast can manufacture heavy-duty precast concrete covers designed to suit the corresponding UDrain section and expected site loading conditions, including solid heavy-duty covers, slotted/grating-type drainage covers, and custom utility covers.

5. Why should developers choose Precast U Drains over site-cast drains?

• Faster Installation: factory-manufactured units can reduce on-site construction and curing activities • Factory-Controlled Quality: consistent dimensions, concrete quality, reinforcement placement Reduced Site Work: less shuttering, reinforcement fabrication and wet construction at site • Consistent Hydraulic Section: uniform internal drainage profile • Predictable Execution: easier lifting, alignment and installation planning Actual time and cost benefits depend on project size, site conditions, installation methodology and logistics.

6. Who manufactures T25 U Drains in Tamil Nadu?

DRSTI Precast is a precast concrete manufacturer based in Coimbatore, Tamil Nadu, supplying heavy duty precast U-Drains, cable trenches, drain covers and other infrastructure products across Tamil Nadu and South India.

7. How is a Precast U Drain T25 installed at the site?

1. Excavate the drain alignment to required line, level, width and depth 2. Prepare and level the specified PCC/foundation base 3. Lift and position precast U-Drain units using suitable lifting equipment 4. Align units to maintain required line, level and hydraulic gradient 5. Treat and seal joints using the specified jointing/sealing system 6. Install precast covers where required 7. Backfill and compact side trenches in suitable layers per project specifications

8. How do I request engineering drawings or a quotation for U Drain T25?

Contact DRSTI Precast with your project layout, required drain length, hydraulic requirements, site conditions and expected traffic/loading. DRSTI Precast can provide product dimensions, cross- sectional drawings, reinforcement details, BOQ support and a project quotation, subject to engineering review.

10. What are the available sizes of T25 U Drains?

DRSTI T25 U Drains are available in multiple standard sizes to suit different drainage and infrastructure requirements. Current standard options include 300 × 300 mm, 300 × 450 mm, 300 × 600 mm, 450 × 300 mm, 450 × 450 mm, 450 × 600 mm, 600 × 300 mm, 600 × 450 mm, 600 × 600 mm, 750 × 750 mm, 900 × 900 mm and 1200 × 1200 mm. Custom sizes can also be considered based on project requirements, load conditions and drainage design.

11. What concrete grade is used for DRSTI T25 U Drains?

DRSTI T25 U Drains are manufactured using M40/M50 grade high-strength concrete. The high-strength concrete, combined with suitable reinforcement and controlled precast manufacturing, provides the durability and structural performance required for heavy-duty road, highway, industrial and commercial applications.

12. What is the difference between T25 U Drain and a conventional U Drain?

The main difference is the designed load requirement and structural configuration. DRSTI T25 U Drains are developed for heavy-duty applications where higher traffic and loading conditions need to be considered. They are manufactured with M40 concrete and heavy-duty reinforcement, making them suitable for applications such as highways, industrial areas, warehouses, logistics parks and other high-traffic locations. A conventional U Drain may be selected for lighter-duty applications depending on the project design and loading requirements.

13. How is the required U Drain size selected for a project?

The required U Drain size is selected based on factors such as stormwater flow, catchment area, drainage slope, required hydraulic capacity, site conditions, traffic or wheel loads, installation depth and available space. For projects involving heavy vehicle movement, the load requirement should also be considered when selecting the drain and cover. DRSTI can recommend a suitable U Drain size based on the project's drainage and structural requirements.

14. How much does a T25 U Drain cost?

The price of a DRSTI T25 U Drain depends on factors such as drain size, wall thickness, concrete grade, reinforcement, cover requirement, order quantity, transportation distance and project specifications. Since requirements can vary from one project to another, the exact price is provided based on the required specification and quantity. For the latest T25 U Drain price and project quotation, contact DRSTI Precast with your required size, quantity, and delivery location. Call us at 99439 43990 / 98438 87001.

15. What information is required to get a T25 U Drain quotation?

To prepare an accurate T25 U Drain quotation, DRSTI generally requires details such as required drain size, quantity or total running length, project location, application, cover requirement, expected loading condition and any specific project or drawing requirements. If available, you can also share the project drawing or drainage specification. These details help DRSTI determine the appropriate product specification, quantity, transportation and installation requirements before providing the quotation.
