Introduction: Drainage Systems in Modern Infrastructure
Drainage plays a critical role in the performance, durability, and safety of roads, industrial sites, residential layouts, and smart cities. A key element of these systems is the U-drain - a U-shaped channel designed to efficiently carry rainwater, surface runoff, or wastewater.
But when it comes to construction methods, two options dominate the field: Precast U-Drains and In-Situ (Cast-in-Place) U-Drains. While both serve the same purpose, precast systems are rapidly becoming the preferred choice for engineers and contractors due to their superior performance, speed, and durability.
Understanding U-Drains in Infrastructure Development
A U-drain (also known as a U-shaped drain or open channel drain) is a specially designed drainage structure used to collect and direct stormwater, surface runoff, or wastewater in infrastructure projects. Its U-shaped cross-section ensures smooth flow and ease of maintenance, making it an ideal solution for:
Highways and roadways
Industrial areas
Railways
Housing layouts and urban drainage systems
Agricultural and irrigation channels
U-drains are crucial in preventing waterlogging, erosion, and pavement damage, improving the durability and safety of civil infrastructure.
Types of U-Drains
Cast-in-Situ U-Drains
This traditional method involves on-site construction where concrete is poured into molds and cured in place. While it offers design flexibility, it has several drawbacks such as slow progress, labor dependency, and weather delays.

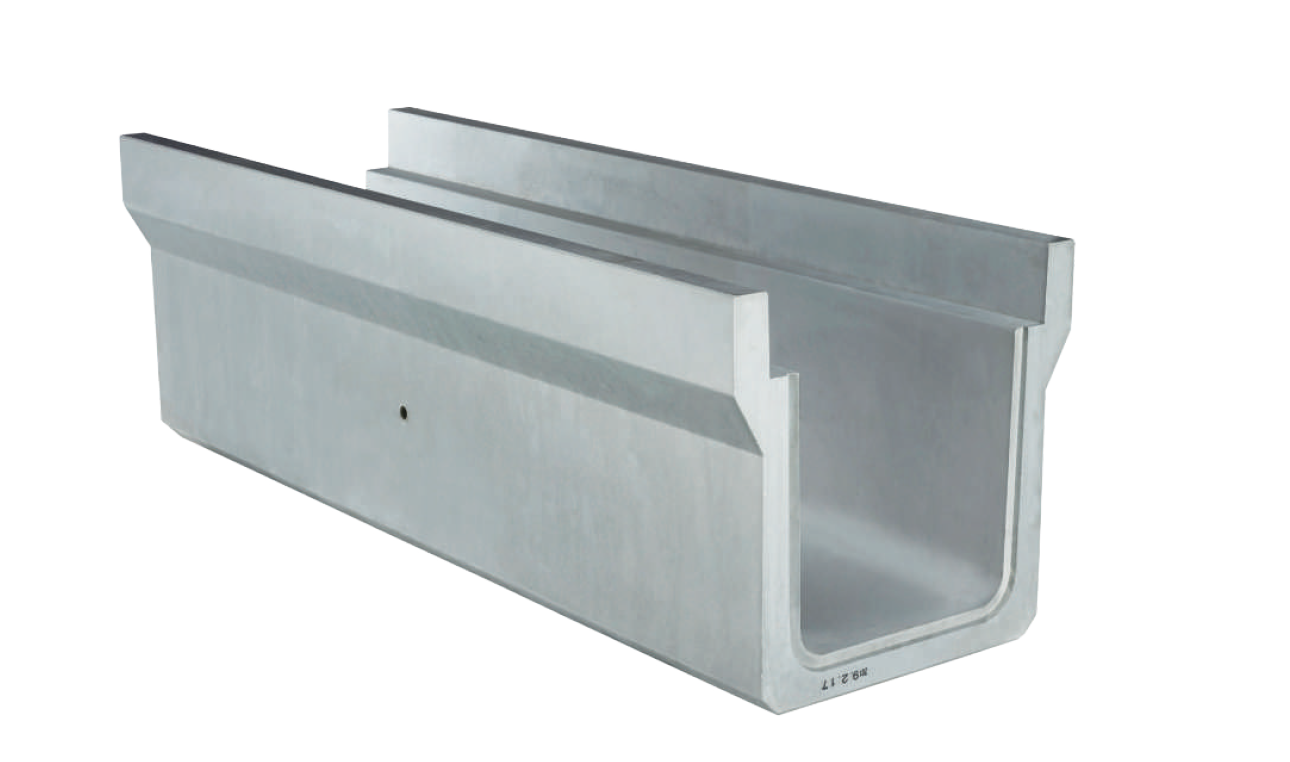

Precast U-Drains
Precast U-drains are manufactured off-site in controlled environments and transported to the site for quick installation. This modern approach ensures faster execution, high-quality standards, and reduced project risks.
Advantages of Precast U-Drains Over In-Situ Construction
Speed of Execution
Precast U-drains are ready-to-install, reducing on-site time dramatically. No need for curing, shuttering, or extended labor. Perfect for projects with tight deadlines.
Example: A 1-km drainage stretch can be completed in a fraction of the time with precast versus traditional casting.
Superior Quality and Consistency
Drsti Precast uses high-grade M40 self-compacting concrete to ensure consistent strength, finish, and dimensional accuracy. Factory casting eliminates the inconsistencies often seen in on-site work.
Reduced Labor and Supervision
In-situ construction requires skilled labor, site engineers, and continuous supervision. Precast systems need minimal workforce only for installation—reducing labor cost and human error.
Weather-Independent Progress
Rain or extreme heat can stall in-situ construction. Precast production continues year-round in our facilities, ensuring uninterrupted project timelines.
Environmental and Site Benefits
Precast reduces:
Dust and site debris
Noise pollution
Concrete waste
Water usage
This aligns with sustainable construction practices and minimizes disruption in active urban or highway environments.
Easy Maintenance and Inspection
The smooth internal finish of precast U-drains allows for easy cleaning and inspection, helping avoid blockages and reducing operational costs in the long run.
Why Choose Drsti Precast for U-Drains?
At Drsti Precast Pvt. Ltd., our precast U drains are designed and manufactured in accordance with the specifications laid out by the Ministry of Road Transport and Highways (MoRTH) and relevant Indian Standards. This ensures high structural integrity, durability, and suitability for heavy-duty infrastructure applications.
High load-bearing capacity - Can handle up to 7.5 tonnes of wheel load
Concrete Grade – M40 as per MoRTH Specifications
Customizable sizes available
Rapid delivery and site support
Suitable for highways, industries, and smart cities
Comparison Table: Precast U-Drains vs In-Situ U-Drains
| S. No | Feature | Precast U-Drains | In-Situ U-Drains |
| 1 | Construction Speed | Very fast – factory-made and installed on-site quickly | Slow – requires formwork, curing, and more site time |
| 2 | Quality Control | High – controlled factory environment | Variable – depends on site conditions and workmanship |
| 3 | Concrete Grade Consistency | Consistent M40-grade or as specified | May vary due to on-site mixing and placement |
| 4 | Labor Requirement | Minimal – mostly installation crew | High – needs skilled labor for casting and curing |
| 5 | Weather Dependence | Not affected – made in factory, installable in all weather | Highly affected – rain can delay work and affect quality |
| 6 | Durability & Strength | High – with proper compaction, curing, and strength | May be lower due to inconsistent curing |
| 7 | Dimensional Accuracy | Excellent – precise mold casting | Inconsistent – depends on shuttering and manual work |
| 8 | Installation Disruption | Minimal – fast placement reduces site downtime | High – extended on-site construction affects traffic/movement |
| 9 | Environmental Impact | Lower – less waste, dust, and water usage | Higher – site waste, water consumption, and noise |
| 10 | Maintenance & Finish | Smooth surface, easier to clean and maintain | Rough finish, harder to maintain |
| 11 | Cost Efficiency (Long-Term) | More cost-effective over time | Higher lifecycle cost due to repairs and delays |
| 12 | Design Flexibility | Standard and customizable options available | Fully flexible but slower and less precise |
| 13 | Jointing & Sealing | Designed joints for leak-proof connections | Requires manual jointing on-site |
Conclusion
In today’s infrastructure development, precast U-drains are not just an alternative—they are the superior choice. When you choose Drsti Precast, you choose speed, quality, and long-term performance. Say goodbye to on-site delays and hello to smarter drainage.
